緊湊型CWDM模塊
所屬分類
超小型的波分復用系列
零售價
0.0
元
市場價
0.0
元
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
特性 ·寬工作波長范圍 ·低插入損耗 ·低偏振相關損耗 ·超緊湊封裝尺寸 ·符合TelcordiaGR-1209和GR-1221 ·極佳的機械穩定性
|
應用 ·城域網 ·數據中心 ·骨干網 ·遠程視頻監控
|
產品概述
威晟光通的緊湊型CWDM系列多通道濾波器用于上傳/下載幾組CWDMOptical光學波長，其中CWDM ITU Grid中的波長為1271,1291......1611nm(間距20nm)，常見通道數為4CH、8CH、18CH。該濾波器具有尺寸小、插入損耗低等優點。所有類型的產品均為戶外使用而設計，溫度范圍為-40℃到+85℃。
規格
| 環境 | Unit | Values | |||
| 工業級溫度 | °C | ||||
| 儲存溫度 | °C | Refer To The Ordering Information | |||
| 光學 | |||||
| 通道數 | ch | 4 | 8 | 18 | |
| 工作波長 | nm | 1260~1620 | |||
| 通道間距 | nm | 20 | |||
| 中心波長 | nm | 1270~1610或1271~1611 | |||
| 通道帶寬 | nm | λc±6.5 | |||
| 插入損耗 | dB | ≤1.0 | ≤1.5 | ≤2.0 | |
| 通道平坦度 | dB | ≤0.5 | |||
| 相鄰?fù)ǖ栏綦x度 | dB | ≥30 | |||
| 非相鄰?fù)ǖ栏綦x度 | dB | ≥40 | |||
| 升級端隔離度 | dB | ≥15 | |||
| 插入損耗熱穩定性 | dB/℃ | <0.005 | |||
| 波長熱穩定性 | nm/℃ | <0.002 | |||
| 方向性 | dB | ≥50 | |||
| 回波損耗 | dB | ≥50 | |||
| 偏振相關損耗 | dB | ≤0.2 | |||
| 偏振模色散 | Ps | ≤0.1 | |||
| 可耐功率 | mW | ≤500 | |||
備注:
1、可靠性測試符合TelcordiaGR-1221-CORE&GR-1209-CORE的標準。
2、該規格不包括連接頭。增加連接頭的插入損耗增加0.3dB，回路損耗減少5dB。
獨特的自由空間技術

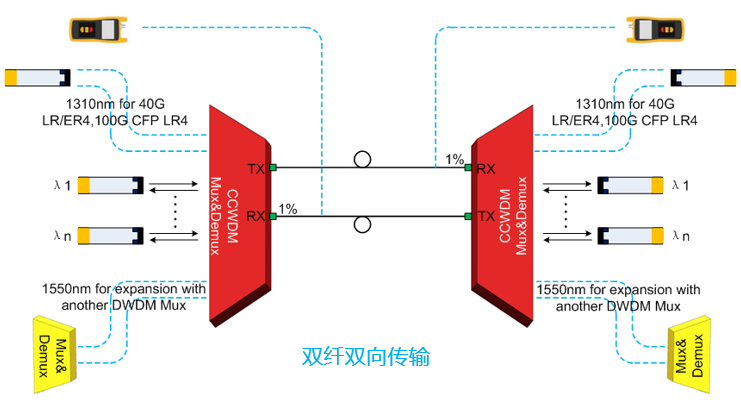

應用案例

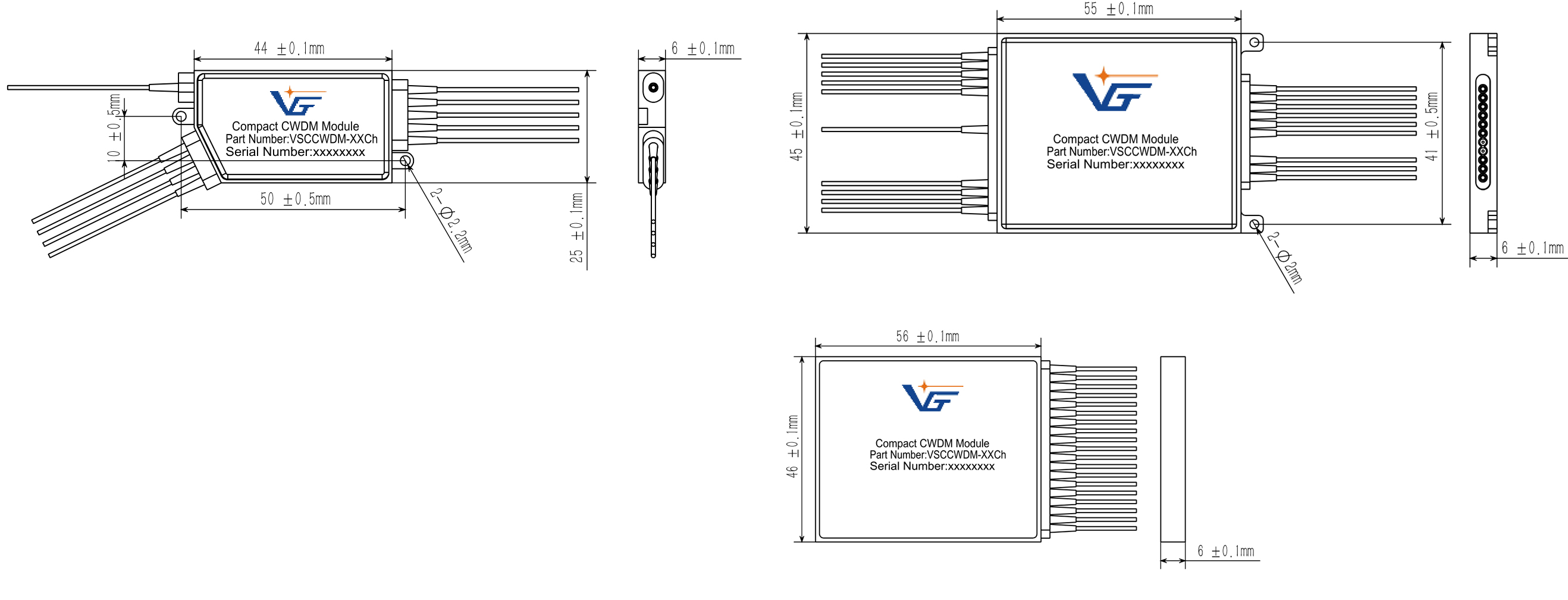

封裝方式
訂購信息
| CCWDM | 初始通道 | 特殊端 | 通道數 | 尾纖類型 | 封裝類型 | 光纖長度 | 連接頭類型 |
| 270=1270nm | M=MON | 02=G657 A1 | 1=0.6mm loose tube | 1=L44×W25×H6mm | 1=0.5m | OO=None | |
| 271=1271nm | 3=1310 | 03=G657 A2 | 2=0.9mm loose tube | 2=L55×W45×H6mm | 2=1.0m | FU=FC/PC | |
| 290=1290nm | E=EXP | 03=G657 A2 | 3=2.0mm loose tube | 3=L56×W46×H6mm | 3=1.5m | FA=FC/APC | |
| 291=1291nm | X=Customized | 03=G657 A2 | X=Customized | X=Customized | 4=2.0m | SU=SC/PC | |
| ...... | ...... | 5=2.5m | SA=SC/APC | ||||
| 590=1590nm | 18=18CH | 6=3.0m | LU=LC/PC | ||||
| 591=1591nm | X=Customized | X=Customized | ST=ST/UPC | ||||
| 610=1610nm | XX=Customized | ||||||
| 611=1611nm | |||||||
